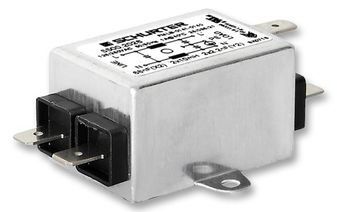

FMLB-41 Filter 1PH 1ST 2A 250VAC M5
FMLB-41 Filter 1PH 1ST 2A 250VAC M5
- Chassis: Screw-on mounting, from top
- Line filter in standard and medical version, 1-stage, standard attenuation
- Quick connect terminals 6.3 x 0.8 mm
- Designed for standard applications
- Protection against interference voltage from the mains
- Possible interferences generated in the equipment are strongly attenuated
- Suitable for use in equipment according to IEC/UL 60950
- Suitable for use in medical equipment according to IEC/UL 60601-1
Характеристики
| Бренд | SCHURTER |
|---|---|
| Описание продукта | 46 x 67 x 25 mm |
| Рабочая температура | -25 to 100 °C |
| Schedule B | 8536300000 |
| HTSN | 8536308000 |
| Страна происхождения | Slovakia |
| Длина | 46 mm |
| Maximum C | 2 A |
| Termination | Quick Connect |
| Maximum V | 250 Vac |
SKU: 5500.2078
