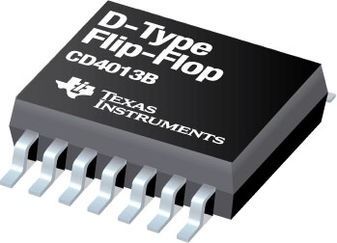

Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOIC T/R

CD4013B consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q\ outputs. These devices can be used for shift register applications, and , by connecting Q\ output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or rest line, respectively.The CD4013B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

• Set-Reset capability
• Static flip-flop operation — retains state indefinitely with clock level either "high" or "low"
• Medium-speed operation — 16MHz (typ.) clock toggle rate at 10 V
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Noise margin (full package-temperature range) =
• 1 V at VDD = 5 V
• 2 V at VDD = 10 V
• 2.5 V at VDD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices
