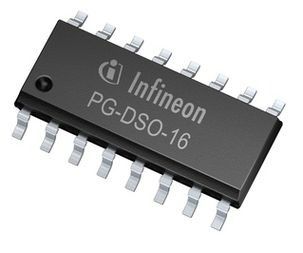

FL Controller 16-Pin DSO T/R

The new ICB2FL03G in a slim SO-16 package is the latest extension of Infineon"s smart ballast controller family. It is tailored for cost-performance optimized applications operating serial connected FL/CFL lamps. The performance and feature set of the ICB2FL03G is very similar to the well established ICB2FL01G in a SO-19 package. The product integrates all functions required to operate FL lamps such as preheat-, ignition- and run-mode and protection features. Digital mixed-signal power control is employed enabling speedy, cost-effective and stable ballast designs with a minimum number of external components. Reliable and robust high voltage isolation is achieved using Infineon’s proprietary Coreless Transformer Technology (CLT)

Integrated critical conduction mode PFC stage with enhanced dynamic PFC performance over wide load range

Intelligent digital-/mixed-signal lamp inverter control

Integrated high-voltage level-shift half-bridge driver

Optimized for dimmable FL/CFL ballasts

Drives up to 2 lamps in serial connection with few external components required

Built-in protection functions such as Over-Voltage Protection (OVP) and Over-Current Protection (OCP)

Adjustable end-of-life detection in multi-lamp topologies and detection of capacitive mode operation

Able to handle lamp chokes with high saturation behavior

Special in-circuit test mode for faster test time

Parameters set with resistors only

Separate adjustable levels of lamp overload and rectifier effect detection (EoL1, EoL2)

Self-adapting dead time adjustment of the half-bridge driver

Highly accurate timing and frequency control over wide temperature range (-25 to 125 °C)
