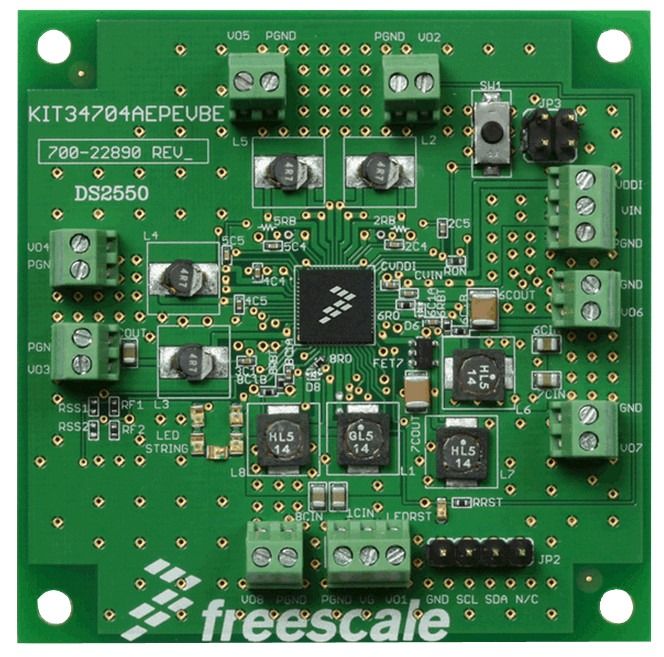

Evaluation Kit For 8-Channel DC-DC Power

The 34704 is a multi-channel Power Management IC (PMIC) used to address power management needs for various multimedia application microprocessors. Its ability to provide either 5 or 8 independent output voltages with a single input power supply (2.7 and 5.5V) together with its high efficiency, make it ideal for portable devices powered up by Li-Ion/polymer batteries or for USB powered devices as well. The 34704 is housed in a 7x7mm, Pb-free, QFN56 and is capable of operating at a switching frequency of up to 2MHz. This makes it possible to reduce external component size and to implement full space efficient power management solutions. Experience Freescale"s unique and innovative virtual lab training.

8 DC/DC (34704A) or 5 DC/DC (34704B) switching regulators with up to ±2% output voltage accuracy

Dynamic voltage scaling on all regulators.

Selectable voltage mode control or current mode control on REG8

I2C programmability

Output under-voltage and over-voltage detection for each regulator

Over-current limit detection and short-circuit protection for each regulator

Thermal limit detection for each regulator, except REG7

Integrated compensation for REG1, REG3, REG6, and REG8

5µA maximum shutdown current (All regulators are off, 5.5V VIN)

True cutoff on all of the boost and buck-boost regulators
