Evaluation Kit - 33905D3, System Basis Chip GEN2 With High Speed CAN And LIN Interface

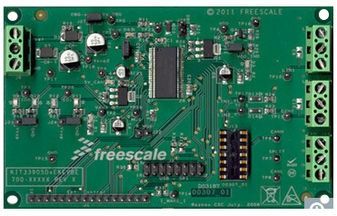

This evaluation board allows the user to implement the functionality of the 33905BD3 and 33904B3 System Basis Chips (SBC), which are the second generation family of System Basis Chips, which combine several features and enhance present module designs. The devices work as an advanced power management unit for the MCU and additional integrated circuits such as sensors, CAN transceivers. They have a built-in enhanced high speed CAN interface (ISO11898-2 and -5), with local and bus failure diagnostics, protection, and fail safe operation mode. The SBCs may include one or two LIN 2.0 interfaces with LIN output pin switches. The 33904/5 include 2 or 3 wake-up input pins than can also be configured as output drivers for flexibility. This Evaluation kit may be used with the KITUSBSPIDGLEVME.

Nominal operating supply voltage range of 5.5 V to 27 V

Individually routed power supply inputs for VSUP1 and VSUP2

5.0/3.3 V regulator for MCU with an external PNP ballast transistor to increase current capability

Multiple CAN Bus termination options supported via socket

Two high/low side I/Os (SPI configurable) accessible through test points

Status of I/O-0 and I/O-1 indicated by an LED (dependent on jumper configuration)

Debug mode/watchdog configuration via jumper settings

MUX output voltage accessible through a test point and external resistor selectable through jumper

3.3 V or 5.0 V output voltage test point VAUX (SPI configurable)

I_WAKE_I test point to enable a FET and load VDD with current to wake-up the SBC

LIN1_T and LIN2_T test points to monitor I/O voltages (SPI configurable)

I/O-0, I/O-1, VAUX, 5V_CAN, SAFE, and VDD status indicated by LED

100 mil 2x8 pin standard header connector for SPI communication

100 mil 16 pin standard header connector for custom MCU board connections
