Evaluation Board for Wireless Power Transmitter P9036A

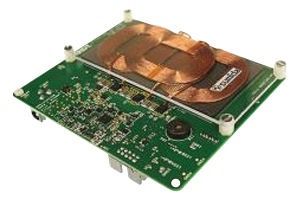

The P9036A-TX-A6 evaluation board serves to demonstrate the features and performance of the P9036A wireless power charging solution for base stations with a Tx-A6 coil transmitter.

• Free positioning Tx-A6 3-coil chargingsystem
• Meets WPC 1.1 specifications with enhancedEMI
• Wireless Charging active area –745mm2
• Input voltage range: 11.5V ~15V
• Output power up to5W
• Efficiency up to70%
• Status indicationLEDs
• Firmware which enables systemmonitoring
• Easy programmability byI2C
• Foreign Object Detection (FOD) andindication
