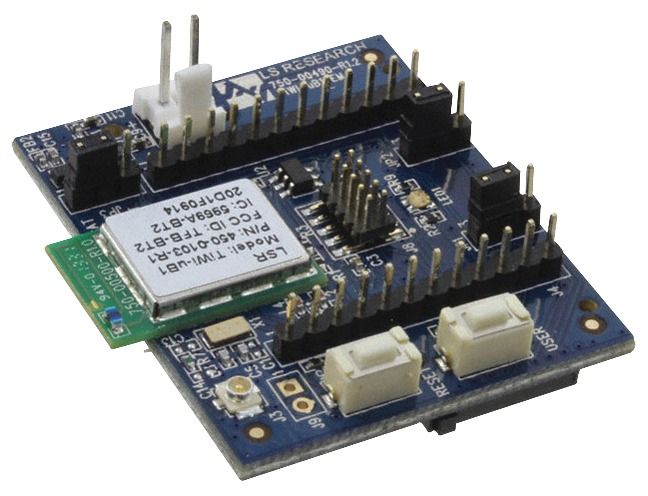

Evaluation Board For TiWi-uB1 Bluetooth Smart (BLE) Module

LSR would like to announce a low-cost and lowpower consumption module which has all of the BluetoothSmart functionalities. The TiWi-uB1 module fully supports the single mode Bluetooth Low Energy operation, and the output power can support class 3. The module provides the ability to either put your entire application into the integrated 8051 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

• Built in CC2541 single-chip Bluetooth Smart (BLE 4.0) System-On-Chip (SOC).
• Memory: 256kB FLASH, 8kB RAM
• RF Output Power: 0 dBm (Class 3)
• RF Receive Sensitivity: -94 dBm
• Size: 11.6mm x 17.9 mm x 2.3 mm
• Operating Voltage: 2.0V to 3.6V
• Operating Temperature: -40 to +85o C
• Worldwide Acceptance: FCC (USA), IC (Canada), and CE (Europe)
• REACH and RoHS compliant
• Complete power-optimized stack, including Controller and Host
  • GAP – Central, Peripheral, Observer, or Broadcaster (Including Combination Roles)
  • ATT/GATT – Client and Server
  • SMP – AES-128 Encryption and Decryption
  • L2CAP
• Multiple Configuration Options
  • Single-Chip Configuration, Allowing Applications to Run on CC2541
  • Network Processor Interface for Applications Running on an External Microcontroller
