EVALUATION BOARD FOR THE

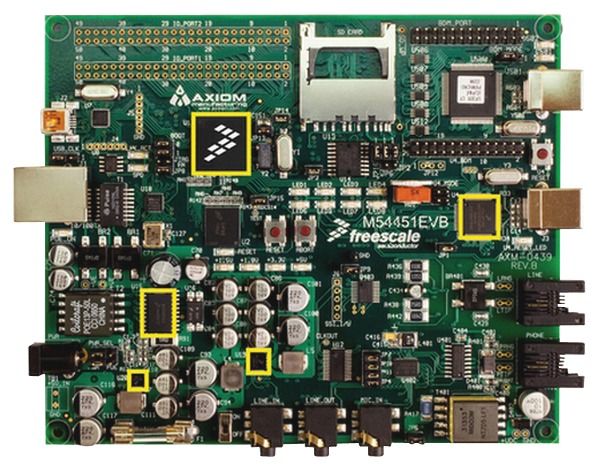

The M54451EVB platform provides a low cost evaluation system for the Freescale MCF5445x ColdFire V4 embedded microprocessor family. The high performance, highly integrated, MCF54451 is the processor featured on this platform. This allows evaluation and development for the entire family on a single hardware platform.

MCF54451 MCU, 256 MAPBGA

128MByte Mobile DDR

16MByte Parallel flash and 8MByte Serial flash

USB OTG PHY on ULPI bus

10/100TX Port on RMII bus w/ POE power supply

Stereo Audio CODEC w/ Line I/O and MIC 3.5mm Jacks

FXS CODEC w/ DAA Phone Connection

FXO CODEC w/ DAA Subscriber Line Connection

Support MCF52211 MCU w/ USB connection

On-Board USB BDM Development Port

SD Card connector

RESET and ABORT (IRQ7) push switches

8 User and 2 10/100TX Status Indicators (LED)

MCU I/O Port Connectors, 2 x 50 pins

External BDM / JTAG Port, 26-pin development port

Regulated +3.3V / 1.8V / 1.5V power supplies w/ indicators
