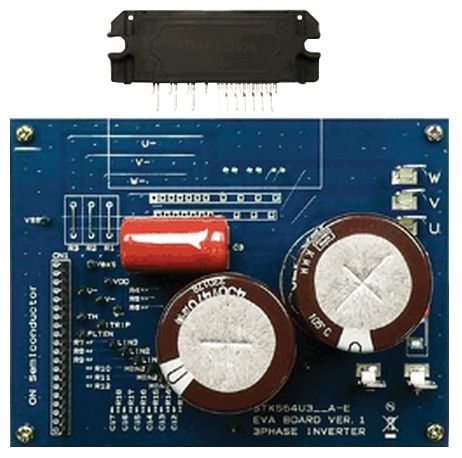

Evaluation Board For STK554U362A Intelligent Power Module

This Intelligent Power Module (IPM) is a highly integrated device containing all High Voltage (HV) control from HV-DC to 3-phase outputs in a single small SIP module. Output stage uses IGBT/FRD technology and implements Under Voltage Protection (UVP) and Over Current Protection (OCP) with a Fault Detection output flag. Internal Boost diodes are provided for high side gate boost drive.

• Over-current Protection Circuit
• Under-voltage lockout for all channels
• Upper/lower ON prevention circuit
• Thermistor for temperature monitor
• Direct input of CMOS level control signals without an insulating
