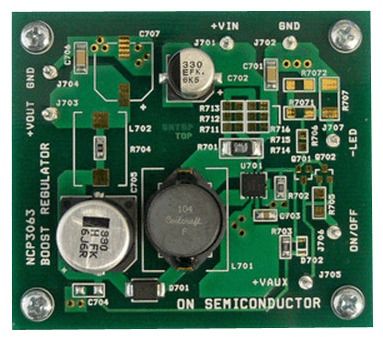

Evaluation Board For NCP3063 Monolithic DC-DC Converter

The NCP3063 Series is a higher frequency upgrade to the popular MC34063A and MC33063A monolithic DC-DC converters. These devices consist of an internal temperature compensated reference, comparator, a controlled duty cycle oscillator with an active current limit circuit, a driver and a high current output switch. This series was specifically designed to be incorporated in Step-Down, Step-Up and Voltage-Inverting applications with a minimum number of external components.

Operation to 40 V Input

Low Standby Current

Output Switch Current to 1.5 A

Frequency Operation of 150 kHz
