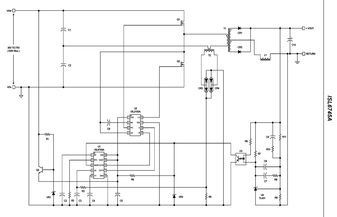

Evaluation Board For Bridge Controller With Precision Dead Time Control

Bridge Controller with Precision Dead Time Control Precision Duty Cycle and Deadtime Control • 100µA Start-up Current • Adjustable Delayed Overcurrent Shutdown and Re-Start • Adjustable Oscillator Frequency Up to 2MHz • 1A MOSFET Gate Drivers • Adjustable Soft-Start • Internal Over Temperature Protection • 35ns Control to Output Propagation Delay • Small Size and Minimal External Component Count • Input Undervoltage Protection • Pb-Free Plus Anneal Available (RoHS Compliant)
