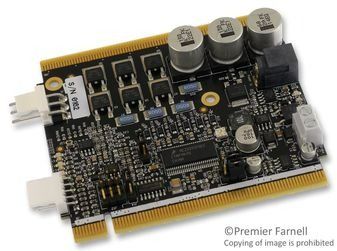

Eval Board Add-On, Low-Voltage, 3-Phase Motor Control Tower System

Add 3-phase Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) motor control capabilities to your Tower System designs with the NXP TWR-MC-LV3PH Low-Voltage 3-Phase Motor Control module. This module effectively turns a Tower System development tool into a motor control reference design kit that includes a BLDC motor. As is standard with all Tower System modules, the TWR-MC-LV3PH is interchangeable across the development platform and can be used with many existing modules including: TWR-K60N512, TWR-56F8257, TWR-K40X256, TWR-KV46F150M, TWR-KV31F120M, TWR-KV10Z32 and TWR-KV11Z75M.

• Power supply voltage input 12-24VDC, extended up to 50VDC
• Output current up to 8 amps
• Power supply reverse polarity protection circuitry
• 3-phase bridge inverter (6-MOSFET’s)
• 3-phase MOSFET gate driver with over current and under voltage protection
• 3-phase and DC bus-current-sensing shunts
• DC bus-voltage sensing
• 3-Phase back-EMF voltage sensing circuitry
• Low-voltage on-board power supplies
• Encoder/Hall sensor sensing circuitry
• Motor power and signal connectors
• User LED, power-on LED, 6 PWM LED diodes
