ESD Suppressor TVS 30KV 2-Pin SMA T/R

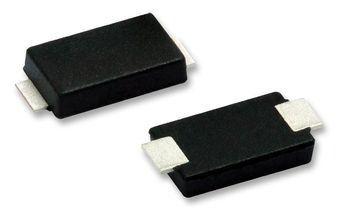

The SMA6TY Transil series has been designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605.The planar technology makes this device compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time. SMA6TY are packaged in SMA (SMA footprint in accordance with IPC 7531 standard).

Peak pulse power:

600 W (10/1000 µs)

4 kW (8/20 µs)

Stand off voltage range: from 5 V to 70 V

Unidirectional and bidirectional types

Low leakage current:

0.2 µA at 25 °C

1 µA at 85 °C

Operating T_{j max}: 150 °C

JEDEC registered package outline

Resin meets UL 94, V0

AEC-Q101 qualified

Complies with the following standards

ISO 10605, C = 150 pF, R = 330 O:30 kV (air discharge)30 kV (contact discharge)

ISO 10605, C = 330 pF, R = 330 O:30 kV (air discharge)30 kV (contact discharge)

ISO 7637-21Pulse 1: V_S= -100 VPulse 2a: V_S= +50 VPulse 3a: V_S= -150 VPulse 3b: V_S= +100 V
