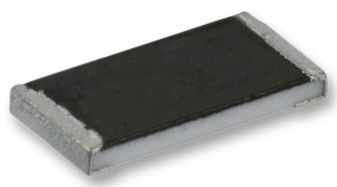

ESD Suppressor TVS ±15kV 2-Pin 0603 T/R
Bourns ChipGuard Automotive MLC Series is a sub-1 pF protector designed specifi cally for use in automotive circuits requiring ESD protection. The CGA-MLC series is available in industry standard 0402 and 0603 packages. In addition to its very low capacitance, these protectors exhibit extremely fast response times to ESD events making them ideal for protecting a wide array of high speed digitial electronic applications.The ChipGuard Automotive MLC Series is fully AEC-Q200 qualifi ed and supported.
- AEC-Q200 qualifi ed
- ESD protection to IEC 61000-4-2 Level 4
- <1 ns response time to ESD strike
- Low leakage current
- Extremely low capacitance (0.05 pF typ.)
- Bidirectional device
- Multi-strike capability
Характеристики
| Бренд | Bourns |
|---|---|
| Lead Finish | Tin Over Nickel |
| Type Prod | TVS |
| Описание продукта | 1.6 x 0.85 x 0.51 |
| Maximum C | 30 V |
| Number Of | 1 |
| Schedule B | 8533210045 |
| HTSN | 8533210030 |
| Страна происхождения | Japan |
| Max Proce | 260 |
| Configuration | Single |
| Esd Prote | ±15@Air Gap|±8@Contact Disc kV |
SKU: CGA0603MLC-24E
