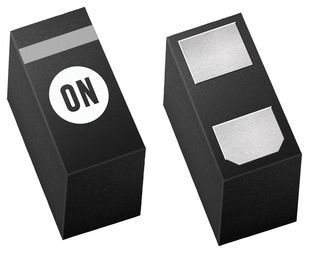

ESD Suppressor TVS ±10KV 2-Pin X3DFN T/R
The ESD5482 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, this part is well suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium.
- Low Capacitance 5 pF
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.60 mm x 0.30 mm
- Low Body Height: 0.3 mm
- Standoff Voltage: 3.3 V
- Low Leakage
- Response Time is < 1 ns
- IEC6100042 Level 4 ESD Protection
- IEC6100044 Level 4 EFT Protection
- These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Maximum W | 3.3 V |
| Type Prod | TVS |
| Описание продукта | 0.62 x 0.32 x 0.28 mm |
| Maximum C | 9.1 V |
| Number Of | 1 |
| Schedule B | 8541100050 |
| HTSN | 8541100050 |
| Страна происхождения | United States |
| Direction Type | Bi-Directional |
| Supplier | X3DFN |
| Msl Level | 1 |
| Esd Prote | ±10@Air Gap|±10@Contact Disc kV |
| Рабочая температура | -55 to 150 °C |
SKU: ESD5482MUT5G
