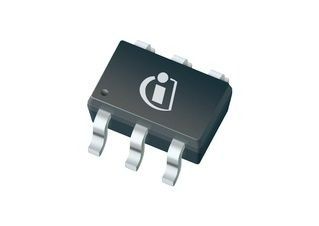

ESD Suppressor Diode Array ±30kV 6-Pin SOT-363 T/R
ESD Suppressor Diode Array ±30kV 6-Pin SOT-363 T/R
ESD / transient protection of data and power lines in 3.3 V / 5 V application according to:IEC61000-4-2 (ESD): ± 30 KV (contact), IEC61000-4-4 (EFT): 80 A (5/50 ns), IEC61000-4-5 (Surge): 10 A (8/20 µs) Working voltage: 5 V (5.3 V max.) Low clamping voltage Low reverse current < 5 µA Pb-free (RoHS compliant) package
Характеристики
| Бренд | Infineon |
|---|---|
| Maximum W | 5.3 V |
| Lead Finish | Tin |
| Type Prod | Diode Array |
| Описание продукта | 2 x 1.25 x 0.9 mm |
| Maximum C | 13 V |
| Number Of | 1 |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Direction Type | Bi-Directional |
| Supplier | SOT-363 |
| Capacitan | 90 pF |
| Configuration | Array 5 |
| Esd Prote | ±30@Contact Disc kV |
| Maximum R | 5 uA |
SKU: ESD5V0S5USE6327HTSA1
