EMI Filter Solder SMD T/R

Common-mode ElectroMagnetic Interference (EMI) filters with integrated ElectroStatic Discharge (ESD) protection for one, two and three differential channels. The devices are designed to provide low insertion loss for differential high-speed signals on each channel while unwanted common-mode signals are attenuated. Each differential channel incorporates two signal lines that are coupled by integrated coils. Diodes provide protection to downstream components from ESD voltages up to ±15 kV on each signal line.

• One, two and three differential channels common-mode EMI filters with integrated ESD protection
• ESD protection up to ±15 kV contact discharge according to IEC 61000-4-2
• Superior common-mode suppression over a wide frequency range
• Superior RF performance compared to other integrated filters or discrete filters with external ESD protection
• Extremely high symmetry between line pairs

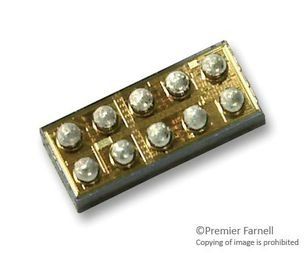

• Industry-standard Wafer Level Chip Scale Packages: WLCSP5, 10 and 15 for smaller footprint
