EMI Filter Flat Style SMD T/R

The EMIF08-LCD04M16 is a 8-line inductorcapacitor (LC) EMI filter designed to suppress EMI/RFI noise in all systems subjected to electromagnetic interferences requiring a large bandwidth.This filter includes an ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up 15 kV contact discharge.

High cut off frequency low-pass filter: FC = 400 MHz at -6 dB

High efficiency in EMI filtering: better than -35 dB from 900 MHz to 2 GHz

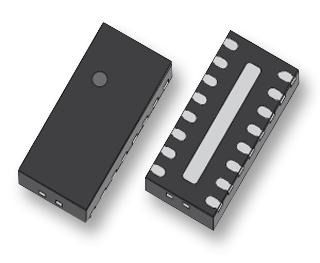

Very low PCB space consuming with plastic micro-package 3.3 x 1.35 mm

Very thin package: 0.55 mm

High efficiency in ESD (IEC 61000-4-2 level 4)

High reliability offered by monolithic integration

High reducing of parasitic elements through integration

ECOPACK® 2 compliant component

Complies with the following standards IEC 61000-4-2 level 4:15 kV (air discharge)8 kV (contact discharge)
