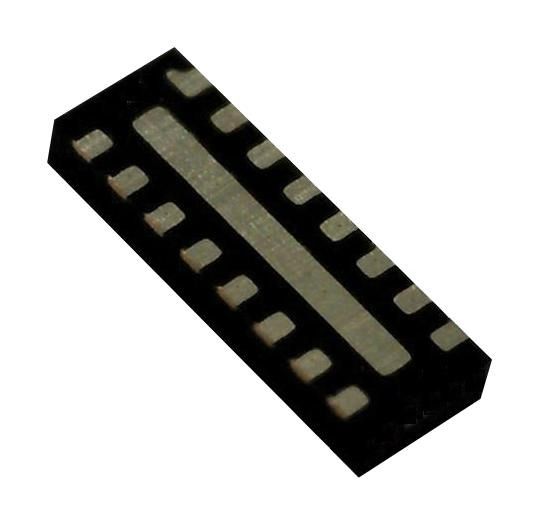

EMI Filter Flat Style SMD T/R

The EMIF06-1005M12 is a 6-line, highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference. This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the input pins.

EMI symmetrical (I/O) low-pass filter

High efficiency in EMI filtering: -34 dB at frequencies from 900 MHz to 1.8 GHz

Very low PCB space consumption: 2.5 mm x 1.5 mm

Very thin package: 0.6 mm max

High efficiency in ESD suppression on inputs pins (IEC 61000-4-2 level 4)

High reliability offered by monolithic integration

High reduction of parasitic elements through integration and wafer level packaging

Lead-free package
