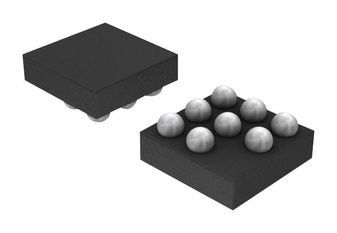

EMI Filter Flat Style SMD T/R

The EMIF03-SIM02F3 is a highly integrated device designed to suppress EMI / RFI noise in all systems subjected to electromagnetic interferences.This filter includes an ESD protection circuitry which prevents damage to the application when subjected to ESD surges up to 15 kV.

EMI symmetrical (I/O) low-pass filter

High efficiency in EMI filtering

Lead-free package

Very low PCB space consuming: 1.2 mm²

Very thin package: 0.60 mm

High efficiency in ESD suppression

High reliability offered by monolithic integration

High reduction of parasitic elements through integration and wafer level packaging

Complies with the following standards IEC 61000-4-2 Level 4 on external and Vcc pins:15 kV (air discharge)8 kV (contact discharge) IEC 61000-4-2 Level 1on internal pins:2 kV (air discharge)2 kV (contact discharge) MIL STD 883E - Method 3015-6 Class 3
