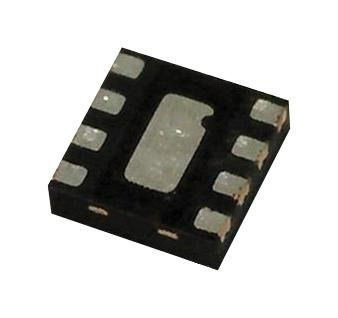

EMI Filter Flat Style SMD

The EMIF03-SIM02M8 is a 3 line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference.This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the external pins.

SIM card EMI low-pass filter

High efficiency in EMI filtering

Very low PCB space consumption: 1.7 mm x 1.5 mm

Very thin package: 0.6 mm max

High efficiency in ESD suppression on external pins (IEC 61000-4-2 level 4).

High reliability offered by monolithic integration

High reduction of parasitic elements through integration and wafer level packaging.

Lead free package

Easy layout and flexibility thanks to I/O topology

Low clamping voltage
