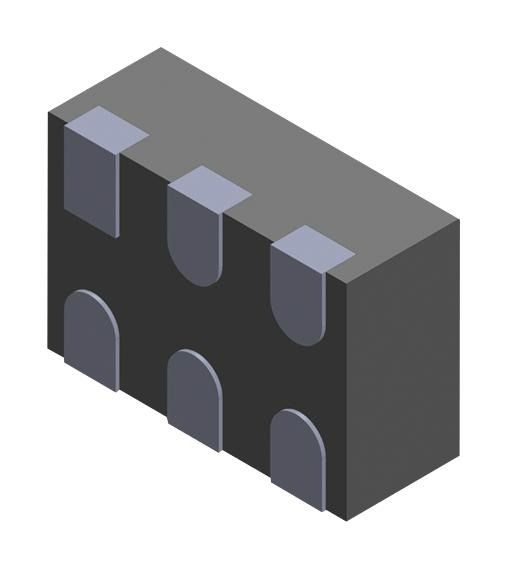

EMI Filter Flat Style SMD

The EMIF02-MIC03M6 is a 2-line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference.This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 8 kV on all pins.

EMI symmetrical (I/O) low-pass filter

High efficiency in EMI filtering

Very low PCB space consumption: 1.0 mm x 1.45 mm

Very thin package: 0.6 mm max

High efficiency in ESD suppression

High reliability offered by monolithic integration

High reduction of parasitic elements through integration and wafer level packaging

Lead-free and halogen-free package

Complies with following standards

IEC 61000-4-2 level 4, input and output pins

IEC 61000-4-2 level 4 requirements

8 kV (contact discharge)

15 kV (air discharge)
