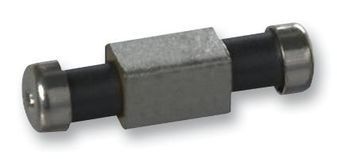

EMI Filter 2A 100VDC Flat Style SMD Embossed T/R
EMI Filter 2A 100VDC Flat Style SMD Embossed T/R
- Its large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use.
- The feedthrough capacitor realizes excellent high frequency characteristics.
- The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits.
- 33 to 3,300pF lineups can be used in signal lines.
Характеристики
| Бренд | Murata |
|---|---|
| Длина | 6.8 mm |
| Рабочая температура | -55 to 125 °C |
| Описание продукта | 6.8 x 1.6 x 1.6 mm |
| Schedule B | 8543706000 |
| HTSN | 8543706000 |
| Lead Finish | Matte Tin|Silver |
| Termination | Flat Style |
| Maximum V | 100 Vdc |
| Type Prod | EMI Suppression Filter |
| Maximum C | 2 A |
| Case Size | 2606 |
SKU: NFE61HT330U2A9L
