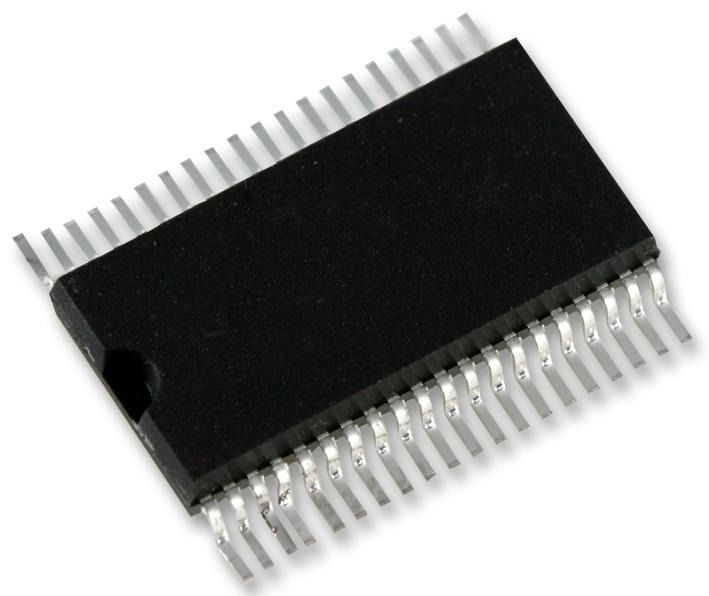

Electronic Volume 40-Pin SSOP-B T/R
ROHM"s 2ch / 6ch electronic volume ICs feature a wide dynamic range (131dB / 133dB). In addition, two ICs can be paired up via serial bus control for 8ch operation.
· Dynamic range : 132dB (tone bypath, VOL = MUTE, IHF-A).
· Master volume 6ch independent (0 to -95dB, MUTE 1dB/step).
· Low current consumption design by use of Bi-CMOS process.
· Maximum output voltage : 4.3Vrms (Vcc=7V, VEE=-7V, RL=10kO).
· Built-in 2 OP amplifiers.
· 2-line serial control (for both 3.3V and 5V).
· Master volume 6ch independent (0 to -95dB, MUTE 1dB/step).
· Low current consumption design by use of Bi-CMOS process.
· Maximum output voltage : 4.3Vrms (Vcc=7V, VEE=-7V, RL=10kO).
· Built-in 2 OP amplifiers.
· 2-line serial control (for both 3.3V and 5V).
Характеристики
| Бренд | ROHM |
|---|---|
| Описание продукта | 13.6 x 5.4 x 1.7 mm |
| Type Prod | Electronic Volume |
| Category | Electronic Volume |
| Schedule B | 8542310000 |
| HTSN | 8542310001 |
| Lead Finish | Tin|Tin/Copper |
| Supplier | SSOP-B |
| Max Proce | 260 |
| Рабочая температура | -20 to 75 °C |
SKU: BD3814FV-E2
