DS9090 1-Wire Device Evaluation Kit

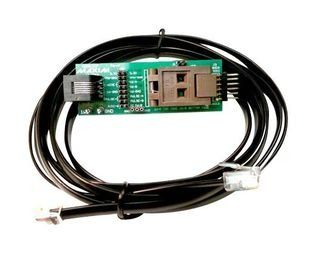

The DS9090 evaluation system (EV system) consists of a DS9490+ USB-to-1-Wire /button adapter for PC connectivity, a DS9120P+ socket board with RJ11 cable, and seven different 1-Wire devices. This EV system provides the special hardware and software system to exercise the features of 1-Wire devices with memory or PIO/switches, except 1-Wire EPROM devices. (EPROM devices such as the DS2502 and DS2506 require a different adapter (DS9481R-3C7) to perform an EPROM write. This adapter can be purchased separately.) 1-Wire EPROM devices are available for sampling. The EV system software consists of the One Wire Viewer (a Java program) that runs under Windows OS and comes as part of the 1-Wire drivers installation package.

• Easy Setup with USB Adapter
• Fully Compliant with USB 2.0 Specification
• Software Runs on Windows 8, Windows 7, Windows Vista®, and Windows XP® OS (32-Bit and 64-Bit Versions)
• Convenient On-Board Test Points and Dual TO92 Socket
• Standard RJ11 Connector Interfaces to DS9120 Socket Boards
• Free Download of 1-Wire Drivers and One Wire Viewer Demonstration Software
• Compatible with Other 1-Wire Devices Purchased Separately
