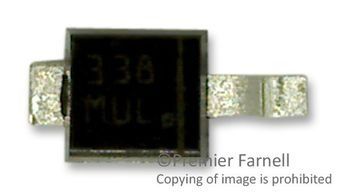

Diode TVS Single Uni-Dir 3.3V 200W 2-Pin ST Mite T/R
The SM2T3V3A is a Transil diode designed specifically for portable equipment and miniaturized electronic devices subject to ESD transient overvoltages. It"s low stand-off voltage makes it suitable for low voltage applications very sensitive to EOS and ESD events.Transil diodes provide high overvoltage protection by clamping action.
unidirectional Transil diode high peak pulse power: 200 w (10/1000 µs) stand-off voltage 3.3 V low clamping factor VCL/VBR fast response time JEDEC registered package outline
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Max Proce | 260 |
| Peak Puls | 200 W |
| Configuration | Single |
| Supplier | ST Mite |
| Esd Protection | Да |
| Рабочая температура | -65 to 150 °C |
| Maximum C | 6.8 V |
| Maximum P | 30 A |
| Описание продукта | 1.9 x 1.9 x 1 mm |
| Msl Level | 1 |
| Maximum R | 500 uA |
| Lead Finish | Matte Tin |
| Direction Type | Uni-Directional |
| Test Current | 1 mA |
| Minimum B | 3.6 V |
| Maximum R | 3.3 V |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
SKU: SM2T3V3A
