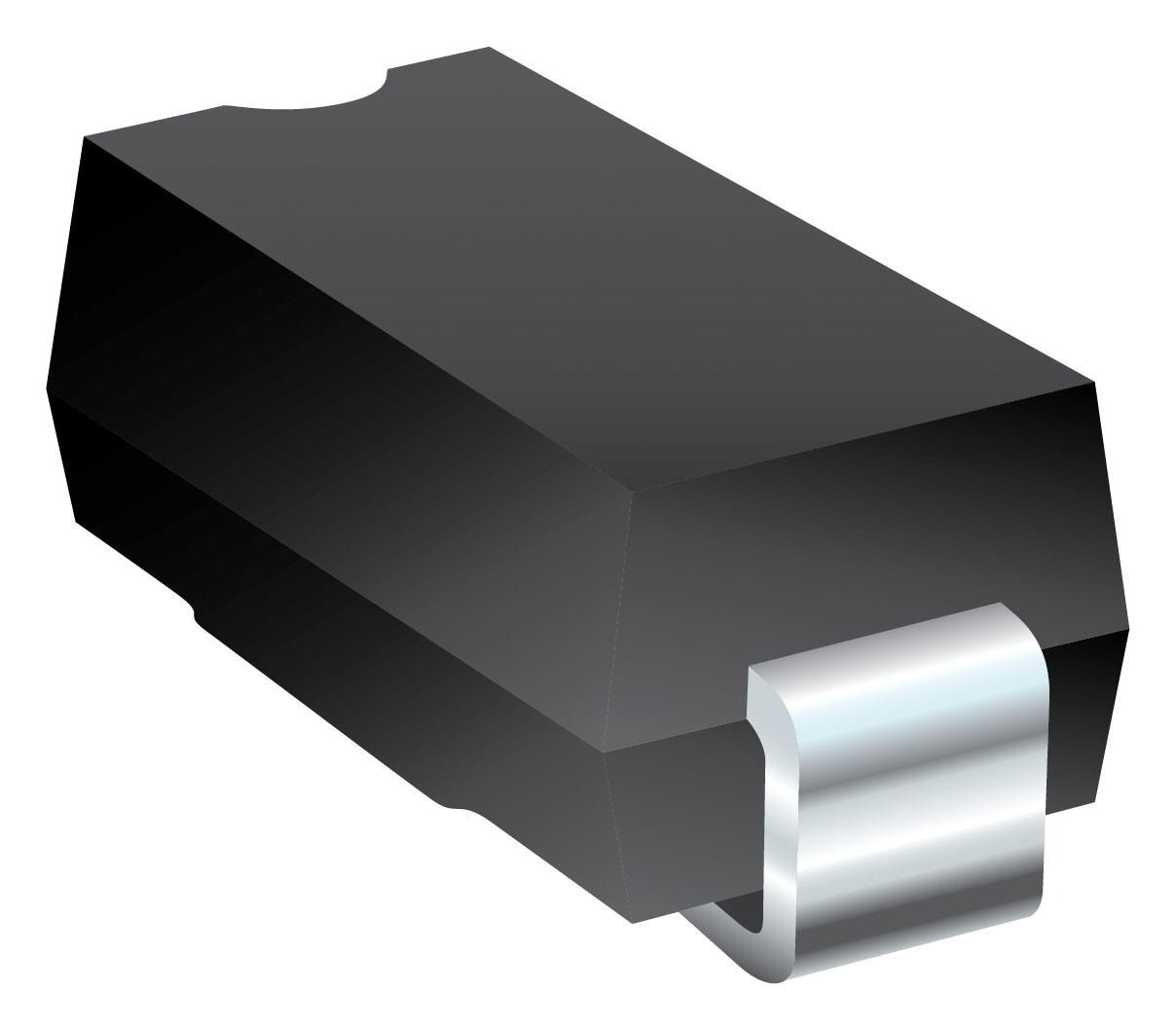

Diode TVS Single Uni-Dir 24V 600W 2-Pin DO-214AC T/R
Diode TVS Single Uni-Dir 24V 600W 2-Pin DO-214AC T/R
Характеристики
| Бренд | Bourns |
|---|---|
| Peak Puls | 600 W |
| Configuration | Single |
| Supplier | DO-214AC |
| Esd Protection | Да |
| Рабочая температура | -55 to 150 °C |
| Maximum C | 38.9 V |
| Maximum P | 15.5 A |
| Описание продукта | 4.5 x 2.79 x 2.087 mm |
| Msl Level | 1 |
| Maximum R | 1 uA |
| Direction Type | Uni-Directional |
| Test Current | 1 mA |
| Minimum B | 26.7 V |
| Maximum R | 24 V |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
SKU: SMA6J24A
