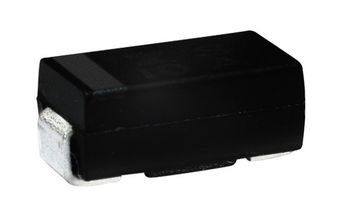

Diode TVS Single Uni-Dir 140V 600W 2-Pin SMBJ
The SMBJ Series are a popular format of general purpose transient voltage suppression diodes. They are based on the low leakage, high reliability, but low cost glass passivated chip rectifier technology.
- Glass passivated chip
- 400W, 600W and 1500W types (10/1000us)
- Low leakage
- Flat clamping
- Very fast response time
- Halogen Free
- =1µA leakage for 12V and up
- Lead-Free Terminations
- Working Peak Reverse Voltage is 140V
Характеристики
| Бренд | AVX |
|---|---|
| Max Proce | 260 |
| Peak Puls | 600 W |
| Configuration | Single |
| Supplier | SMBJ |
| Esd Protection | Нет |
| Рабочая температура | -55 to 150 °C |
| Maximum C | 227 V |
| Maximum P | 2.65 A |
| Описание продукта | 4.75 x 3.8 mm |
| Msl Level | 1 |
| Maximum R | 1 uA |
| Lead Finish | Tin |
| Direction Type | Uni-Directional |
| Test Current | 1 mA |
| Minimum B | 155 V |
| Maximum R | 140 V |
| Schedule B | 8541406010 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
SKU: SMBJ140A
