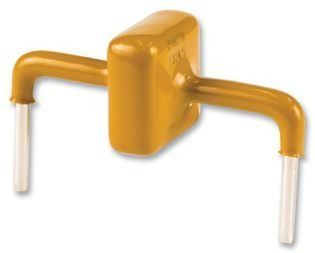

Diode TVS Single Bi-Dir 76V 2-Pin
The Model PTVS3-xxxC-TH Series high current bidirectional TVS diodes are designed for use in high power DC bus clamping applications. These devices offer bidirectional port protection and are available with standoff voltage ratings of 58 V and 76 V.The devices are RoHS compliant and UL Recognized (pending). They also meet IEC 61000-4-5 8/20 µs current surge requirements.
- 3 kA, 8/20 µs surge capability
- Low clamping voltage under surge
- Bidirectional TVS
- Excellent performance over temperature
- UL Recognized
Характеристики
| Бренд | Bourns |
|---|---|
| Max Proce | 260 |
| Рабочая температура | -40 to 125 °C |
| Maximum C | 140 V |
| Maximum P | 3000 A |
| Описание продукта | 25.98 x 9.3(Max) x 10.8(Max) |
| Maximum R | 10 uA |
| Lead Finish | Silver |
| Direction Type | Bi-Directional |
| Minimum B | 85 V |
| Maximum R | 76 V |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
| Screening Level | Extended Industrial |
SKU: PTVS3-076C-TH
