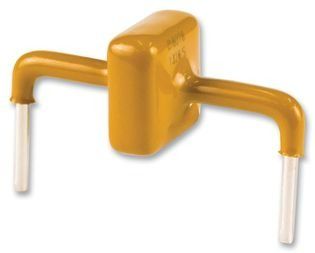

Diode TVS Single Bi-Dir 58V 2-Pin
This high current bidirectional TVS diodes is designed for use in AC line protection and high power DC bus clamping applications. These devices offer bidirectional port of 58 volts. The devices are RoHS and UL compliant while also meeting IEC 61000-4-5 8/20 µs current surge requirements.
- 6 kA, 8/20 µs surge capability
- Low clamping voltage under surge
- Bidirectional TVS
- UL Recognized
Характеристики
| Бренд | Bourns |
|---|---|
| Max Proce | 260 |
| Configuration | Single |
| Esd Protection | Нет |
| Рабочая температура | -40 to 125 °C |
| Maximum C | 110 V |
| Maximum P | 6 A |
| Maximum R | 10 uA |
| Lead Finish | Silver |
| Direction Type | Bi-Directional |
| Test Current | 10 mA |
| Minimum B | 64 V |
| Maximum R | 58 V |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
| Screening Level | Extended Industrial |
SKU: PTVS6-058C-TH
