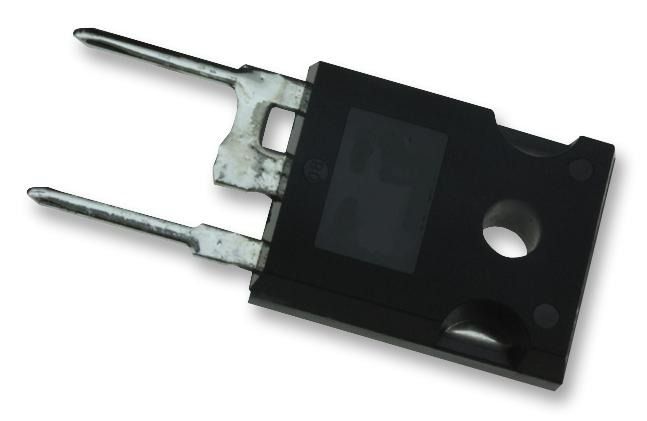

Diode Switching 1.2KV 40A 2-Pin(2+Tab) TO-247AC Modified
The 40EPF12 fast soft recovery rectifier has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions.
- Glass passivated pellet chip junction
- 150 °C max. operating junction temperature
- Low forward voltage drop and short reverse recovery time
- Designed and qualified according to JEDEC®-JESD 47
- Maximum Peak Reverse Voltage: 1200V
Характеристики
| Бренд | Vishay |
|---|---|
| Lead Finish | Matte Tin |
| Peak Reve | 100 uA |
| Supplier | TO-247AC Modified |
| Peak Forw | 1.4 V |
| Рабочая температура | -40 to 150 °C |
| Peak Reve | 450 ns |
| Peak Repe | 1200 V |
| Описание продукта | 15.87 x 5.31 x 20.7 mm |
| Type Prod | Switching Diode |
| Peak Aver | 40 A |
| Configuration | Single |
| Peak Non | 475 A |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Hong Kong S.A.R. of China |
SKU: 40EPF12PBF
