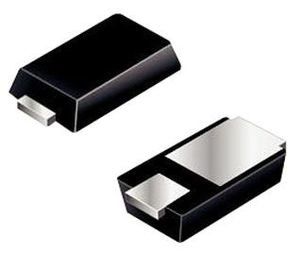

Diode Switching 100V 1A 2-Pin Micro SMP Plastic T/R
Diode Switching 100V 1A 2-Pin Micro SMP Plastic T/R
- Very low profile - typical height of 0.65 mm
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current
- ESD capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
- Repetitive peak reverse voltage VRRM 100 V max
Характеристики
| Бренд | Vishay |
|---|---|
| Lead Finish | Matte Tin |
| Max Proce | 260 |
| Peak Reve | 1 uA |
| Supplier | Micro SMP |
| Peak Forw | 1.1 V |
| Msl Level | 1 |
| Рабочая температура | -55 to 175 °C |
| Peak Reve | 960 ns |
| Peak Repe | 100 V |
| Описание продукта | 2.3(Max) x 1.4(Max) x 0.73(Max) |
| Type Prod | Switching Diode |
| Peak Aver | 1 A |
| Configuration | Single |
| Peak Non | 18 A |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
| Screening Level | Automotive |
SKU: MSX1PBHM3/89A
