Diode Schottky 60V 1A 3-Pin HUSON T/R

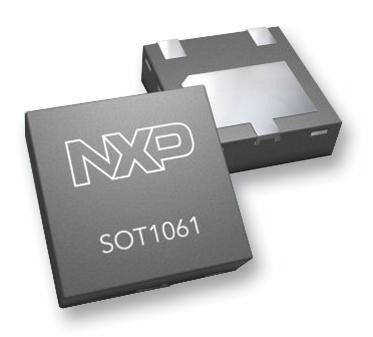

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier in common cathode configuration with an integrated guard ring for stress protection, encapsulated in a SOT1061 leadless small Surface-Mounted Device (SMD) plastic package with medium power capability.
- Average forward current: IF(AV) = 1 A
- Reverse voltage: VR = 60 V
- Low forward voltage
- Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity
- Leadless small SMD plastic package with medium power capability
- AEC-Q101 qualified
Характеристики
| Бренд | Nexperia |
|---|---|
| Configuration | Dual Common Cathode |
| Peak Repe | 60 V |
| Peak Forw | 0.54 V |
| Supplier | HUSON |
| Peak Reve | 100 uA |
| Type Prod | Schottky Diode |
| Peak Aver | 1 A |
| Peak Non | 9 A |
| Описание продукта | 2 x 2 x 0.61 mm |
| Schedule B | 8541100050 |
| HTSN | 8541100080 |
| Страна происхождения | United States |
| Рабочая температура | -55 to 150 °C |
| Msl Level | 1 |
| Lead Finish | Tin |
| Max Proce | 260 |
| Peak Reve | 40 ns |
SKU: PMEG6010CPA,115
