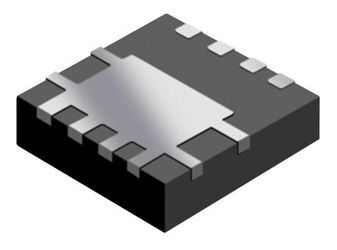

Diode Schottky 45V 45A 8-Pin Power FLAT T/R
Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.Packaged in PowerFLAT, this device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.Its low profile was especially designed to be used in applications with space-saving constraints.
Low forward voltage drop Very small conduction losses Negligible switching losses Extremely fast switching Low thermal resistance Avalanche capability specified Thin package: 1 mm ECOPACK® 2 compliant component
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Configuration | Single Dual Anode |
| Peak Repe | 45 V |
| Peak Forw | 0.64 V |
| Supplier | Power Flat |
| Peak Reve | 300 uA |
| Type Prod | Schottky Diode |
| Peak Aver | 45 A |
| Peak Non | 200 A |
| Описание продукта | 5.2 x 0.95 mm |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
| Рабочая температура | -65 to 150 °C |
| Msl Level | 1 |
| Lead Finish | Matte Tin|Gold |
| Max Proce | 260 |
SKU: STPS3045DJF-TR
