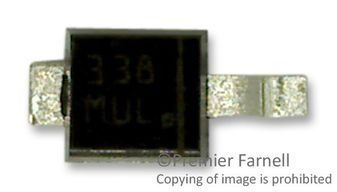

Diode Schottky 20V 1A 2-Pin(1+Tab) ST Mite T/R
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in STmite, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. Due to the very small size of the package this device fits battery powered equipment (cellular, notebook, PDA"s, printers) as well as chargers and PCMCIA cards.
Very small conduction losses Negligible switching losses Extremely fast switching Low forward voltage drop for higher efficiency and extended battery life Low thermal resistance Avalanche capability specified
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Configuration | Single |
| Peak Repe | 20 V |
| Peak Forw | 0.53 V |
| Supplier | ST Mite |
| Peak Reve | 75 uA |
| Type Prod | Schottky Diode |
| Peak Aver | 1 A |
| Peak Non | 50 A |
| Описание продукта | 1.9 x 1.9 x 1 mm |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Рабочая температура | -65 to 150 °C |
| Msl Level | 1 |
| Lead Finish | Matte Tin |
| Max Proce | 260 |
SKU: STPS1L20M
