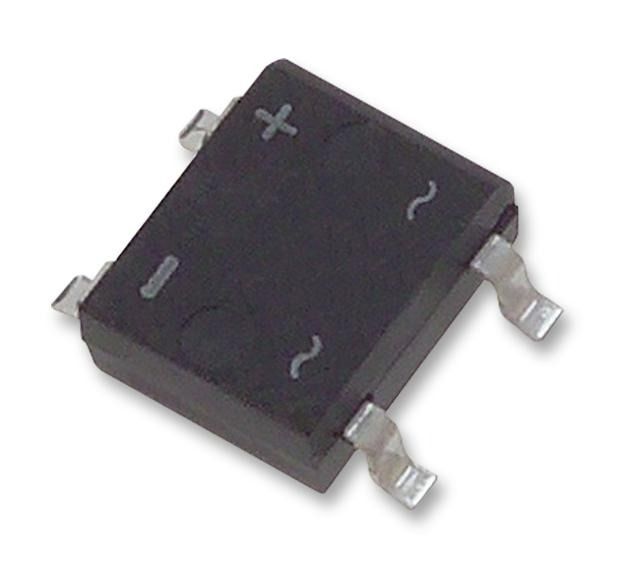

Diode Rectifier Bridge Single 800V 1A 4-Pin Micro DIP

With the ever pressing need to improve power supply efficiencyand reliability, the MDBxS family is focused on offeringa best in class small form factor combined with best inclass efficient rectifier performance. The “S” family offers industry leading balance of efficiency,size, and cost. They offer designers improved efficiency byachieving an industry leading VF of 0.935 V Typ. at 1 A 25°C, and a VF of 1.165 V Typ. at 5 A 25 °C. These lower VFvalues offer roughly a 5% efficiency improvement overmeasured competitive same form factor devices. Thislower VF vs. competitive devices results in cooler and moreefficient power supply operation. The design supports a 30 A IFSM rating to absorb highsurge currents and offers rated breakdown voltages up to1000 V. Finally, the MDBxS family achieves all this in a small formfactor micro-dip package - offering a max height of 1.6 mm,and requiring only 35 mm2 of board space.

• Low Package Profile: 1.60 mm (max)
• Small Area Requirements: 35 mm2
• Efficient VF - 0.935 V (Typ) at 1 A - 1.165 V (Typ) at 5 A
• IF(AV) = 1.0 A
• IFSM = 30 A
• Glass Passivated Junctions
• RoHS Compliant
• Halogen Free
• UL Certification: E352360
