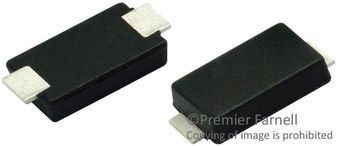

Diode Rectifier 200V 3A 2-Pin DO-221AC Plastic T/R
Diode Rectifier 200V 3A 2-Pin DO-221AC Plastic T/R
- Very low profile -typical height of 0.95 mm
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current
- ESD capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
- AEC-Q101 qualified
- Maximum repetitive peak reverse voltage Vrrm is 200V
Характеристики
| Бренд | Vishay |
|---|---|
| Lead Finish | Matte Tin |
| Max Proce | 260 |
| Peak Reve | 10 uA |
| Supplier | DO-221AC |
| Peak Forw | 1.1 V |
| Msl Level | 1 |
| Рабочая температура | -55 to 175 °C |
| Peak Reve | 1500 ns |
| Peak Repe | 200 V |
| Описание продукта | 4.35(Max) x 6.15(Max) x 1.2(Max) |
| Type Prod | Rectifier Diode |
| Peak Aver | 3 A |
| Configuration | Single |
| Peak Non | 40 A |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
| Screening Level | Automotive |
SKU: SE30AFDHM3/6A
