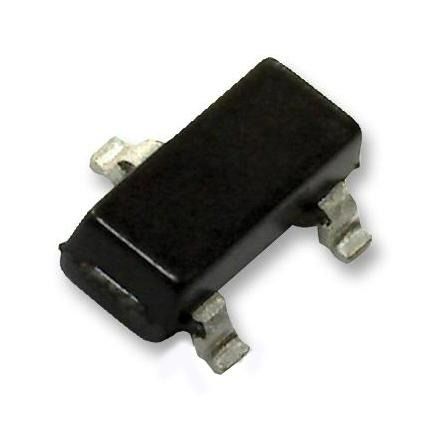

Diode PIN 50V 3-Pin CP T/R
1SV267 is PIN Diode, 50V, 50mA, rs=2.5 Ohm(typ), Dual CP for VHF, UHF and AGC applications.
- Series connection of 2 elements in a very smallsized package facilitates high-density mounting and permits 1SV267-applied equipment to be made smaller
- Small interterminal capacitance (C=0.23pF typ)
- Small forward series resistance (rs=2.5O typ)
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Frequency Range | VHF|UHF |
| Max Proce | 260 |
| Maximum P | 150 mW |
| Описание продукта | 2.9 x 1.5 x 1.1 mm |
| Msl Level | 1 |
| Maximum D | 0.23@50 pF |
| Maximum F | 50 mA |
| Lead Finish | Matte Tin |
| Maximum S | 2.5@10mA Ohm |
| Configuration | Dual Series |
| Peak Forw | 0.91 V |
| Supplier | CP |
| Maximum S | 4(Typ)@5mA Ohm |
| Schedule B | 8541100070 |
| HTSN | 8541100080 |
| Страна происхождения | Китай |
SKU: 1SV267-TB-E
