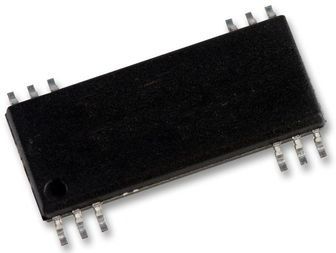

Digital Coupler 12-Pin SOP Tube

The ISO150 is a 2-channel, galvanically-isolated data coupler capable of data rates of 80M Baud, typical. Each channelcan be individually programmed to transmit data in either direction. Data is transmitted across the isolation barrier by coupling complementary pulses through high voltage 0.4 pF capacitors. Receiver circuitry restores the pulses to standard logic levels. Differential signal transmission rejects isolation-mode voltage transients up to 1.6 kV/µs The ISO150 avoids problems commonly associated with optocouplers. Optically isolated couplers require high current pulses and allowance must be made for LED aging. The ISO150"s Bi-CMOS circuitry operates at 25 mW per channel. The ISO150 is available in an SO-28 and is specified for operation from -40°C to 85°C.

Replaces High-Performance Optocouplers

Data Rate: 80 M Baud, Typ

Low Power Consumption: 25 mW Per Channel, Max

Two Channels, Each Bidirectional, Programmable by User

Partial Discharge Tested: 2400 Vrms

Creepage Distance of 7,2 mm

Low Cost Per Channel

Available in SO Package

UL 1577 Certified

APPLICATIONS

• Digital Isolation for A/D, D/A Conversion
• Isolated RS-485 Interface
• Multiplexed Data Transmission
• Isolated Parallel to Serial Interface
• Test Equipment
• Microprocessor System Interface
• Isolated Line Receiver
• Ground Loop Elimination
