Development Tool For Misc Hardware 9S08DZ60 Evaluation Board

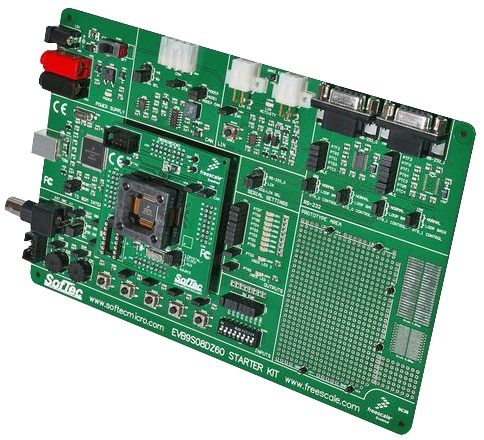

The EVB9S08DZ60/128 evaluation board allow users to program and debug advance application code with expanded I/O functions, peripherals and large prototype areas.  It can be used as a stand alone application or via its built-in USB-to-BDM interface.

Clock module, crystal oscillator, and connector for providing an external clock source

BDM connector

Four header connections with all MCU signals

12 V DC barrel input connector (2.1 mm)

Two banana input connectors (12 V DC and GND)

Power on/off switch

Built-in "USB to BDM Interface"

Reset push-button

Four additional push buttons

Two potentiometers

Eight dip-switches

Series of jumpers to connect/disconnect the above controls

Outputs section containing ten LEDS and relative jumpers

CAN section that has CAN connector with two CAN transceivers (high speed and single wire) with series of jumpers to select the CAN physical layer

LIN section with LIN connectors andh LIN enable jumper and a "WAKE" push button

RS-232 section with two RS-232 connectors

Serial settings section containing two jumpers to select which transceiver is connected to microcontroller"s shared TXD1 and RXD1 serial lines

Prototype area
