Development Platform, Kinetis M Series Tower System Module

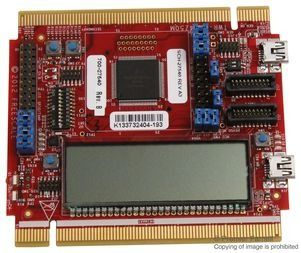

The TWR-KM34Z50M is a development platform for the NXP KM3x and KM1x families of Kinetis MCUs The TWR-KM34Z50M operates as a standalone debug tool and can also be combined and used as part of the modular Tower system development platform.

• MKM34Z5128CLL5 MCU (50 MHz, 128 KB flash, 16 KB RAM, low power, LQFP100 package)
• USB interface with mini-AB USB connector
• Large 160-segment glass LCD
• Onboard debug circuit: open source JTAG/SWD (OpenSDA) with virtual serial port
• Three-axis accelerometer/anti-tamper tilt sensor (MMA8491Q)
• Four user-controllable LEDs
• Potentiometer
• External tamper pins
• Independent, battery-operated power supply for real-time clock (RTC) and tamper detection modules
• Onboard 7-channel sinusoidal signal generator with USB interface for emulating the AC net waveforms
• IRDA support
• NTC temperature sensor
• General-purpose Tower plug-in (TWRPI) socket
