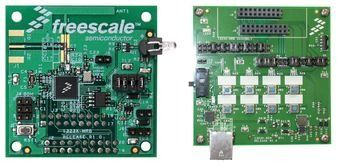

Development Kit For MC13234CHT RF Transceiver

Freescale"s fourth-generation 2.4 GHz IEEE 802.15.4/ZigBee ready solution is designed to meet the needs of the consumer electronics market, yet offers features and functions that are well-suited to many wireless applications in the consumer, healthcare and industrial markets. The MC1323x combines an IEEE 802.15.4 radio with an HCS08-QE core into a cost-effective system-on-chip (SoC) that provides a low-power, flexible and robust solution for wireless control and monitoring applications.

IEEE 802.15.4 standard compliant SoC

• supports SMAC, IEEE 802.15.4, SynkroRF™ and ZigBee protocol stacks

2.4 GHz ISM band operation

-94 dBm typical receiver (<1% per,="" 20-byte="">

Programmable transmitter output power (-30 dBm to +2 dBm typical)

Low power consumption

• <1 ua="">
• 22 mA low power Rx Sniff mode
• 34 mA Rx mode
• 26 mA Tx mode

Hardware acceleration for IEEE 802.15.4 applications

Advanced encryption/decryption hardware engine (AES 128-bit)

8-bit HCS08 MCU operating at 32 MHz bus frequency

128 KB Flash, 8 KB RAM

12-bit analog-to-digital converter (MC13237 only)

1.8–3.6V with low battery detect

-40°C to +85°C operating temperature

7 mm x 7 mm 48-pin LGA package
