Development Kit For Kinetis K 120MHz Microcontroller

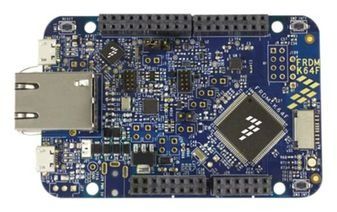

The Freedom-K64F is an ultra-low-cost development platform for Kinetis K64, K63, and K24 MCUs. Form-factor compatible with the Arduino R3 pin layout Peripherals enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, a tri-colored LED and 2 user push-buttons for direct interaction, a microSD card slot, and connectivity using onboard Ethernet port and headers for use with Bluetooth and 2.4 GHz radio add-on modules OpenSDAv2, the NXP open source hardware embedded serial and debug adapter running an open source bootloader, offers options for serial communication, flash programming, and run-control debugging.

• MK64FN1M0VLL12 MCU (120 MHz, 1 MB flash memory, 256 KB RAM, low-power, crystal-less USB, and 100 Low profile Quad Flat Package (LQFP))
• Dual role USB interface with micro-B USB connector
• RGB LED
• FXOS8700CQ accelerometer and magnetometer
• Two user push buttons
• Flexible power supply option – OpenSDAv2 USB, Kinetis K64 USB, and external source
• Easy access to MCU input/output through Arduino™ R3 compatible I/O connectors
• Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP Interface software that provides:
  • Mass storage device (MSD) flash programming interface
  • CMSIS-DAP debug interface over a driver-less USB HID connection providing run-control debugging and compatibility with IDE tools
  • Virtual serial port interface
  • Open source CMSIS-DAP software project
• Ethernet
• SDHC
• Add-on RF module: nRF24L01+ Nordic 2.4GHz Radio
• Add-on Bluetooth module: JY-MCU BT board V1.05 BT
