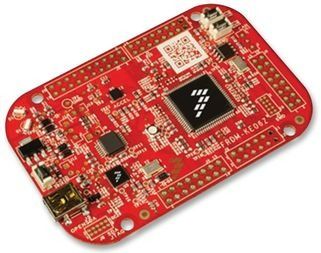

Development Kit For Kinetis E KE06 48MHz 64KB Flash Microcontrollers

The FRDM-KE06Z is a simple, yet sophisticated development platform for Kinetis KE06 MCUs, built on ARM Cortex -M0+ core. Features include easy access to MCU I/O, battery-ready, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KE06Z is supported by a range of Freescale and third-party development software.

MKE06Z128VLK4 MCU – 48MHz, 128KB Flash, 16KB SRAM, 80LQFP

Key input, MMA8451Q accelerometer, RGB LED

Flexible power supply options – USB, external source

Easy access to MCU I/O

IrDA transmitter and receiver

CAN communication

Form factor compatible with Arduino™ R3 pin layout

New, OpenSDA debug interface

• Mass storage device flash programming interface (default)
  • No tool installation required to evaluate demo apps
• P&E Debug interface provides run-control debugging and compatibility with IDE tools
• CMSIS-DAP interface: new ARM standard for embedded debug interface
