Development Board, Kinetis K80 MCU Tower System Module

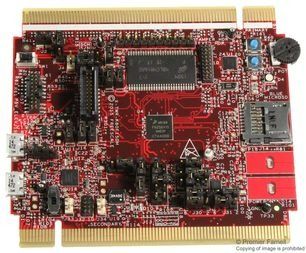

The K80F150M Tower MCU Module (TWR-K80F150M) is a low-cost evaluation, demonstration, and development board, which features the Kinetis 150 MHz K80 low-power MCU. ?MK80FN256VDC15 MCU
•150 MHz Cortex-M4 core, 256KB Flash, 256 KB SRAM, 121 XFBGA, with QuadSPIcontroller, ROM Bootloader, SDRAM controller and USB
?Tower compatible processor board
?Onboard debug circuit: K20DX128VFM5 OpenSDA with virtual serial port
?2 x 32 Mbit (4 MB) Dual On-board QuadSPI memory @ 1.8 V
?64 Mbit (8 MB) SDRAM Memory
?Five user-controlled status LEDs
?Two capacitive touch pads
?Two mechanical push buttons
?Standalone full-speed USB host and device function
?Potentiometer
?MicroSD Card Slot
?EMVSIM Card Interface
?Ten axis sensor system
oFXOS8700CQ 3D Accelerometer + 3D Magnetometer
oMPL3115A2 Digital Pressure Sensor
oFXAS21002C 3-axis gyroscope
?Socket for Touch Keypad plug-in (TWRPI-TOUCH-STR)
?Board power select with 3.3 V or 1.8 V MCU operation
?Independent, battery-operated power supply for real-time clock (RTC) module
?Battery holder for 20 mm lithium battery (e.g. 2032, 2025)
