Development Board For Multiple Sensors

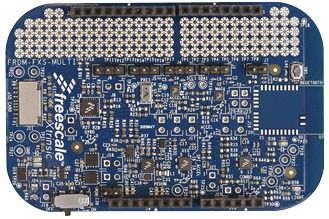

The FRDM-FXS-MULTI is a sensor expansion board for the MMA8652FC accelerometer, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor, MMA955xL sensing platform and the FXAS21000 gyroscope (superseded by FXAS21002C). The FRDM-FXS-MULTI is the first of its kind, offering 12-axis sensing, wireless with Bluetooth and the compatible Android app, the Freescale Sensor Fusion Toolbox. This board is also compatible with Freescale’s Intelligent Sensing Framework (ISF). Devices on the Board FXLS8471Q: ±2g/±4g/±8g, Low g, 14-Bit Digital Accelerometer MMA8652FC: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer FXOS8700CQ: Digital Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer MAG3110: Freescale High Accuracy, 3D Magnetometer MMA955xL: Freescale Motion Sensing Platform MPL3115A2: 50 to 110kPa, Absolute Digital Pressure Sensor FXAS21000: Freescale 3-Axis Digital Gyroscope (superseded by FXAS21002C)

Arduino™ footprint-compatible with support for sensor expansion boards

Small size at approximately 81 x 52 x 2 mm

Easy access to the MCU I/O pins

For Bluetooth® with battery operation, please reference the FRDM-FXS-MULTI-B kit
