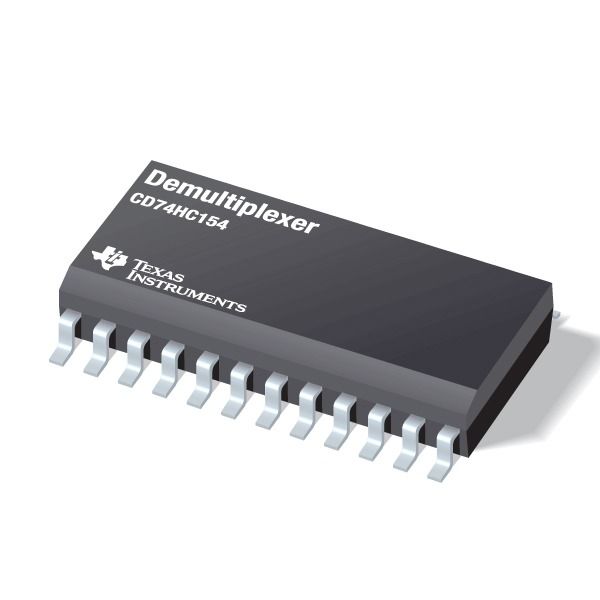

Decoder/Demultiplexer Single 4-to-16 24-Pin SOIC T/R

The ’HC154 and ’HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\, and using one enable as the data input while holding the other enable low.

Two Enable Inputs to Facilitate Demultiplexing and Cascading Functions

Fanout (Over Temperature Range)

• Standard Outputs. . . . . . 10 LSTTL Loads
• Bus Driver Outputs. . . 15 LSTTL Loads

Wide Operating Temperature Range . . . –55°C to 125°C

Balanced Propagation Delay and Transition Times

Significant Power Reduction Compared to LSTTL Logic ICs

HC Types

• 2V to 6V Operation
• High Noise Immunity: N_IL= 30%, N_IH = 30% of V_CC at V_CC = 5V

HCT Types

• 4.5V to 5.5V Operation
• Direct LSTTL Input Logic Compatibility, V_IL = 0.8V (Max), V_IH = 2V (Min)
• CMOS Input Compatibility, I_l = 1µA at V_OL, V_OH
