DAC 1-CH Segment 14-bit 28-Pin SOIC W

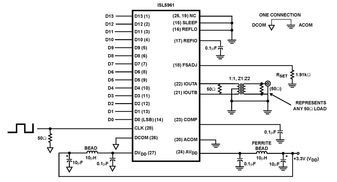

The ISL5961 is a 14-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high speed converters, which include 10, 12, and 14-bit devices.
- Speed Grades : 130M and 210+MSPS
- Low Power : 103mW with 20mA Output at 130MSPS
- Adjustable Full Scale Output Current : 2mA to 20mA
- +3.3V Power Supply
- 3V LVCMOS Compatible Inputs
- Excellent Spurious Free Dynamic Range (75dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
- UMTS Adjacent Channel Power =71dB at 19.2MHz
- EDGE/GSM SFDR = 94dBc at 11MHz in 20MHz Window
- Pin compatible, 3.3V, Lower Power Replacement For The AD9754 and HI5960
- Pb-free available
Характеристики
| Бренд | Renesas Electronics |
|---|---|
| Schedule B | 8542390000 |
| Digital S | Да |
| Operating | 3.6|2.7|3.3 V |
| Voltage R | Internal|External |
| Output Polarity | Unipolar |
| Output Type | Current |
| Screening Level | Industrial |
| Рабочая температура | -40 to 85 °C |
| Resolution | 14 Bit |
| Digital I | Parallel |
| Architecture | Segment |
| Power Sup | Analog|Digital |
| HTSN | 8542390001 |
| Страна происхождения | United States |
| Max Proce | 260|300 |
| Supplier | SOIC W |
| Conversion Rate | 250 Msps |
| Описание продукта | 18.1 x 7.6 x 2.35 mm |
| Lead Finish | Matte Tin |
| Full Scal | 3 % of FSR |
| Msl Level | 3 |
| Integral | 5 LSB |
SKU: ISL5961/2IBZ
