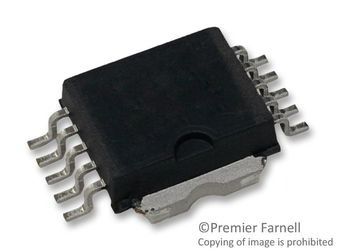

Current Mode PWM Controller 700V 1.5A 10-Pin(10+2Tab) PowerSO T/R

VIPer50A-E/ASP-E, made using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized, high voltage, Vertical Power MOSFET (700V/ 1.5A). Typical applications cover offline power supplies with a secondary power capability of 25W in wide range condition and 50W in single range or with doubler configuration. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst mode operation is an additional feature of this device, offering the ability to operate in stand-by mode without extra components.

ADJUSTABLE SWITCHING FREQUENCY UP TO 200 kHz

CURRENT MODE CONTROL

SOFT START AND SHUTDOWN CONTROL

AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION ABLE TO MEET “BLUE ANGEL” NORM (<1w TOTAL POWER CONSUMPTION)

INTERNALLY TRIMMED ZENER REFERENCE

UNDERVOLTAGE LOCK-OUT WITH HYSTERESIS

INTEGRATED START-UP SUPPLY

OVER-TEMPERATURE PROTECTION

LOW STAND-BY CURRENT

ADJUSTABLE CURRENT LIMITATION
