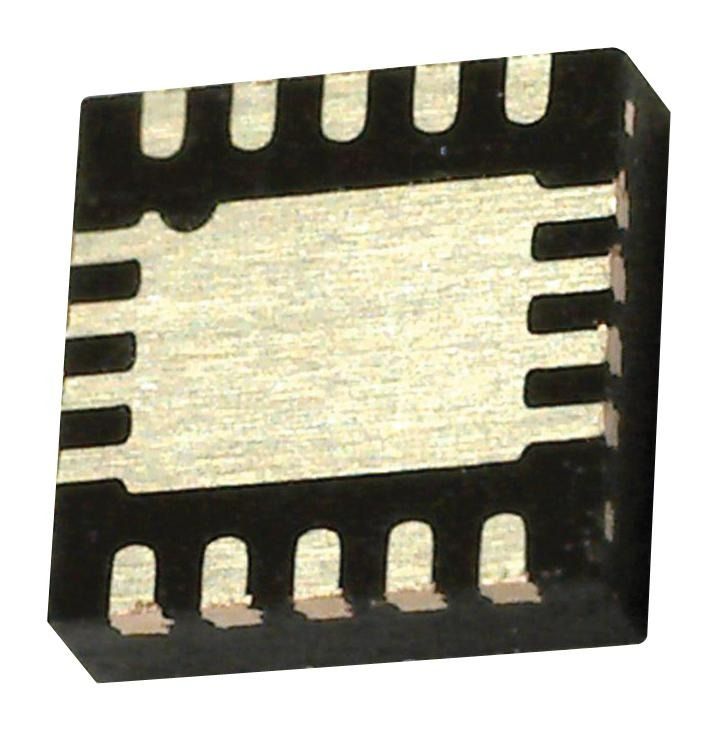

Conv DC-DC Single Step Down 4.5V 36V 10-Pin VDFPN T/R

The L6984 is a step-down monolithic switching regulator able to deliver up to 400 mA DC. The output voltage adjustability ranges from 0.9 V. The fixed 3.3 V VOUTrequires no external resistor divider. The “Low Consumption Mode” (LCM) is designed for applications active during car parking, so it maximizes the efficiency at light load with controlled output voltage ripple. The “Low Noise Mode” (LNM) makes the switching frequency almost constant over the load current range, serving low noise application specification like car audio/sensors. The PGOOD open collector output can implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load, and the high switching frequency capability make the size of the application compact. Pulse-by-pulse current sensing on low-side power element implements an effective constant current protection.

400 mA DC output current

4.5 V to 36 V operating input voltage

Synchronous rectification

Low consumption mode or low noise mode

100 µA I_Qat light load (LCM V_OUT= 3.3 V)

13 µA I_Q-SHTDWN

Adjustable f_SW(250 kHz - 600 kHz)

Output voltage adjustable from 0.9 V

No resistor divider required for 3.3 V V_OUT

V_BIASmaximizes efficiency at light load

350 mA valley current limit

Constant on-time control scheme

PGOOD open collector

Thermal shutdown
